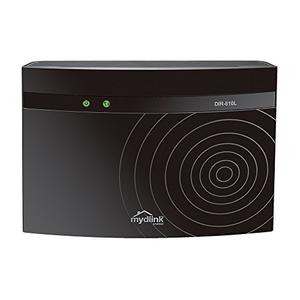

The D-Link DIR-810L rev B1 router has Gigabit WiFi, 4 100mbps ETH-ports and 0 USB-ports.
It is also known as the D-Link Wireless AC750 Dual Band Cloud Router.
How to hard reset (factory reset) D-Link DIR-810L rev B1 :
You can hard reset your D-Link DIR-810L rev B1 with ways bellow
With the reset button
Locate the reset button on the back off the router
While the unit is powered on, press the reset button with a sharp object (e.g. paperclip)
Hold the button pressed for 10 seconds, then release.
The unit will reboot by itself and once the WLAN light stops blinking the factory reset is done.
You can now setup your router again through the user interface
D-Link DIR-810L rev B1 default Login & Password, factory settings :
Default Gateway IP: 192.168.0.1
D-Link login instructions
Default username: Admin
D-Link router default password list
Default subnet mask: 255.255.255.0
Default DNS server: 192.168.0.1
D-Link DIR-810L rev B1 router specifications :
CPU: 580 MHz
RAM: 64 MiB
Flash: 8 MiB
Custom firmwares: OpenWrt
WiFi: Gigabit (abgn+ac)
2.4GHz & 5GHz
WiFi throughput: n/a
1 x 100mbps port
4 x 100mbps ports
How to login to the D-Link DIR-810L rev B1 :
Make sure you are connected to the router’s network, either by Wi-Fi or ethernet cable.
Open your browser and visit
You should be prompted with a login dialogue.
Enter the username: Admin
and if it requires a password, leave it empty or try with admin / password
You will now be logged in. If you haven’t yet changed the defaul password, we recommend that you change it first
thing you do after logging in.
